Unique digital studio facility
UAI (USEYA ADVANCED INDUSTRY) is a digital production workshop and cloud DIY facility based in Izumi City, Osaka Prefecture.

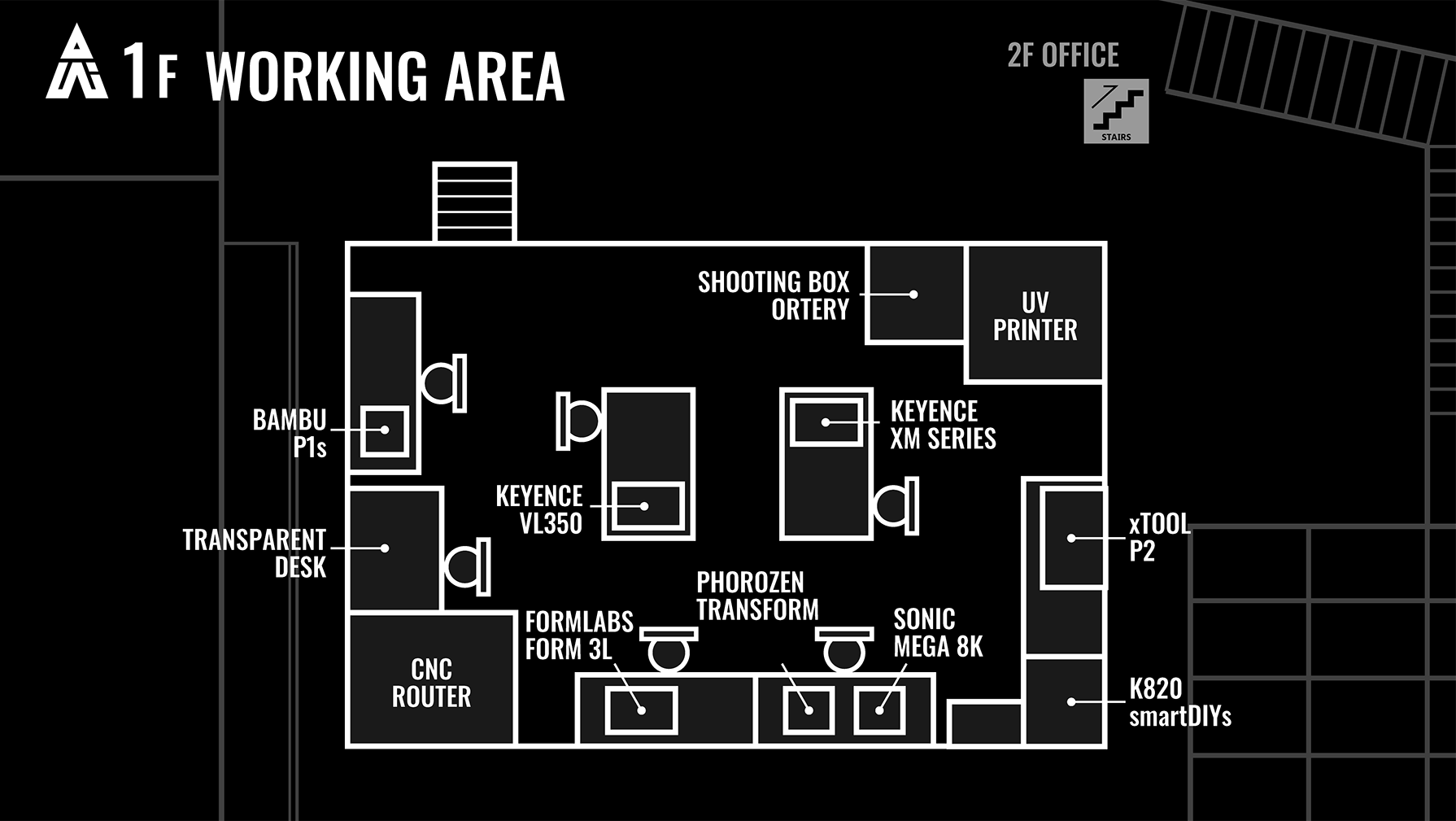

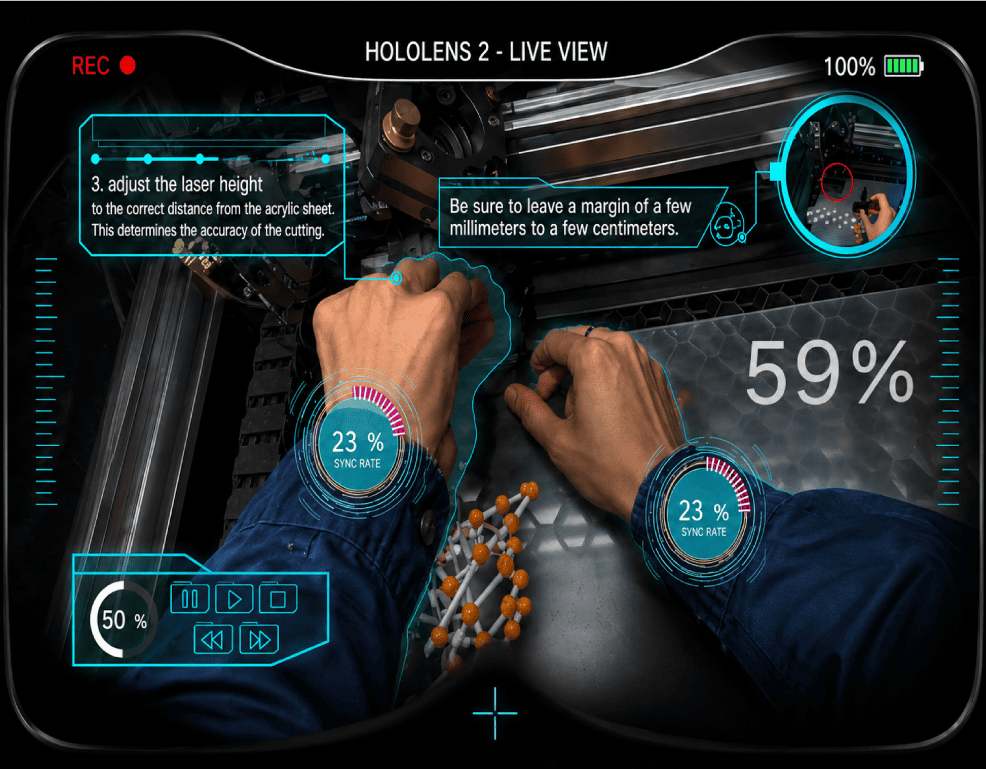

UAI is fully equipped with smart glasses (HMD), 3D scanners, 3D printers, UV printers, laser processing machines, automatic photography systems, and private booths for telework and distribution. It is not only a production workshop but also has multiple purposes like a shared experience of digital equipment and operating skills that transcends time and space, online sales of produced goods, a place for creators to socialize, and esports training.
A variety of professional digital device
We have a wide variety of semi-professional digital equipment for manufacturing. There is also digital equipment with a one-of-a-kind workstation (developed by USEYA) with a transparency display that you cannot find anywhere else!
Automated system
By full membership system
Facility use is by membership only, with reservations and use of facilities and equipment managed by an app, making it an automated, near-future-type facility and system that requires as little human intervention as possible.
Entry by app authentication or fingerprint authentication
Each facility use is managed by reserving the time of use in advance through the app and then authenticating the use of the facility through the app authentication.
Request what you want to make
The list of request will be
displayed on UAI My Page
Producer selects a request and discusses
the terms and conditions
Establish the contract agreement.
The producer will reserve the equipment in UAI
and produce the requested work.
UAI will mail the completed work to
the client, or the client can come to
UAI to pick it up.
Peer review
It is not only about producing goods by yourself.
Matching Services
UAI offers the "TAKUMI System" on Member's My Page, a system for matching people who have the skills to use the installed equipment with those who have something they want to make but do not have the skills to operate the installed digital studio equipment.
Members who request the orders: | Request the original work they want to make and get the results! |
---|---|
Members who accept the orders: | You can use the workshop not only as a hub for production but also as a hub for receiving work orders! |
a reservation.
a reservation.
a reservation.
a reservation.
a reservation.
a reservation.
a reservation.
a reservation.
a reservation.
Not available to support members.
The member can request TAKUMI member to produce the goods based on the design made by
the requester or even start from the design request.

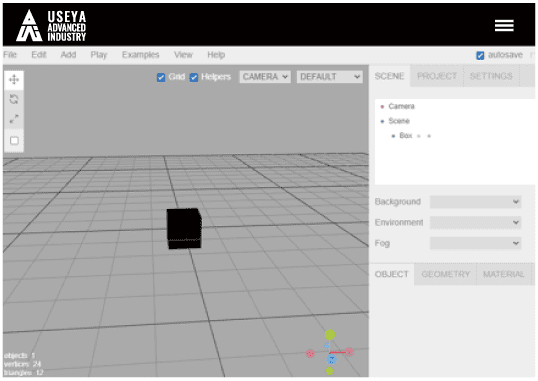

We also have a way to upload drawing files created on a PC.

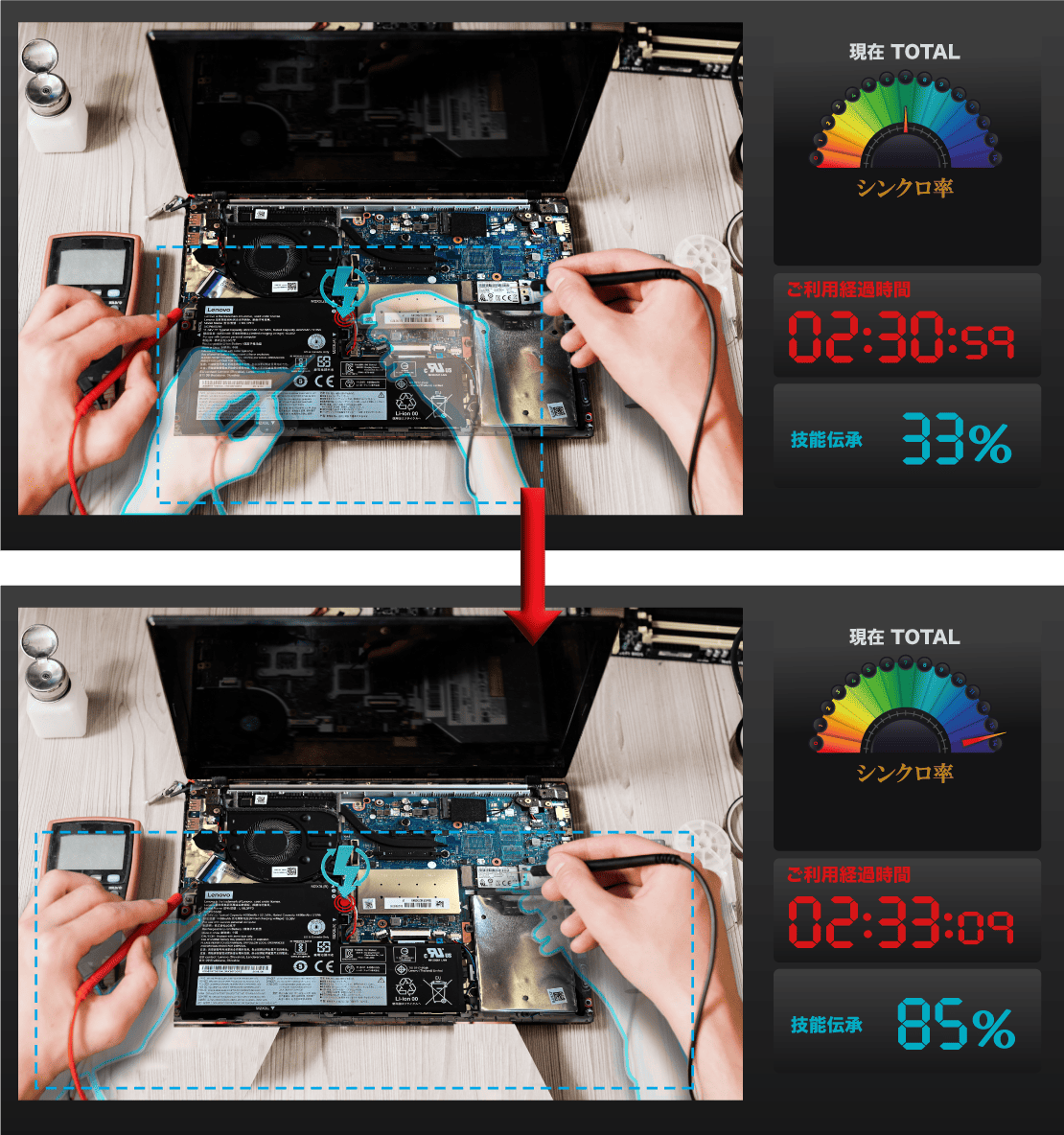

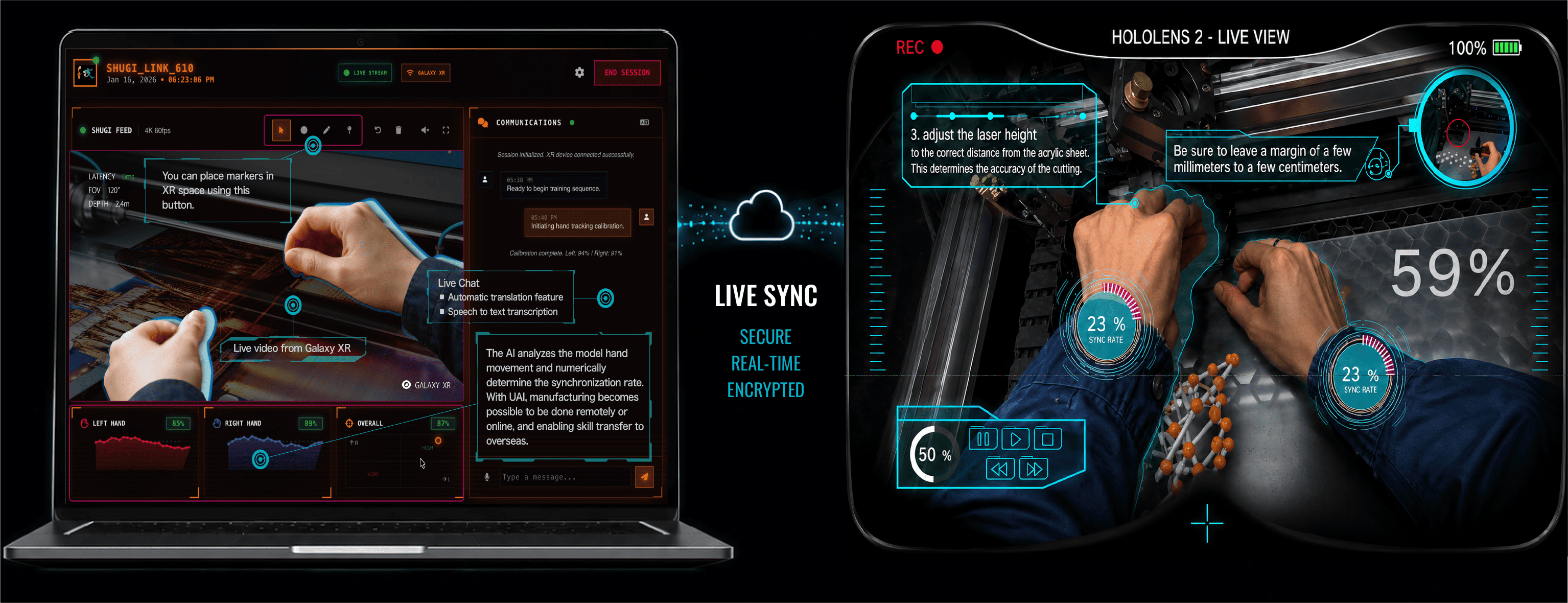

Conversely, experienced persons can also give support remotely!
It can be used in both ways!
Capable of printing at 43µm XY resolution
This 3D printer is well-known for its high speed and convenience. A new high-speed system utilizing ACF film and low-viscosity resin (TR300) makes it possible to cure up to 900 layers per hour. These technological advances have greatly improved print efficiency and quality.
Sonic Mega 8K comes with a user-friendly lift-up cover. This cover is easier to use than conventional breakaway covers and reduces accidents during printing. It also includes a drip hanger for handling uncured resin stuck to the build plate to minimize handling difficulties.
Regarding the specifications of this 3D printer, the main unit size is 472 x 380 x 566mm, and the printing size is 330 x 185 x 300mm. The stacking pitch is 0.01-0.3mm, and the pixel size is 0.043mm. The print speed is 600 layers/hour on average, a maximum of 70mm/hour, and uses USB as data input. The weight of the main unit is 26 kg. The system uses CHITUBOX as the slice software. These specifications indicate that although it is a large model, it is designed to be easy to use for individual users.
The Phrozen Sonic Mega 8K is recognized for its large build plate, high-speed printing capability, user-friendly design, and relatively affordable price, making it a suitable 3D printer for home and small commercial applications. Technological advances and increased convenience make it an attractive option for a wider range of users.
Advanced resin 3D printer
Furthermore, Phrozen Transform FAST has a 40cm Z-axis, allowing it to print much larger objects than other resin 3D printers on the market. Its total build size reaches approximately 29.2 x 16.5 x 40 cm³. This printer also has exceptionally high precision and efficiency, offering an XY resolution of 76μm when using a 13.3-inch panel and an even higher resolution of 47μm when using a dual-panel setup.
Durability and stability are also essential features of Phrozen Transform FAST. The Z-axis of the machine has a thick aluminum built, with double linear rails and ball screws, which can continue printing stably for a long time. Additionally, this printer comes with a ParaLED optical engine, which significantly reduces the overall emission angle of LCD-based light sources and increases light efficiency across the panel.
As for the technical specifications, the build volume is 11.5 x 6.5 x 15.75 inches for the 13.3 inches 4K LCD. The design is a prefabricated metal construction using CNC machined parts. The XY resolution is 47 microns for the dual 5.5-inch 2K and 76 microns for the 13.3-inch 4K. The Z resolution print speed can reach up to 200 layers per hour. The machine is 15.16 x 14.02 x 24.29 inches and weighs 72.75 pounds. The cooling system uses a multi-fan cooling system. The system uses a ball screw/dual linear rail to control the Z-axis movement. In addition, the system uses Omron's optical end stop sensor as the sensor, and a 405nm UV-LED ParaLED matrix as the light source.
Large print size allows you to print prototypes in actual the size.
The Form 3L is also distinctive in its appearance and design. With external dimensions of 770 x 520 x 740 mm (30.3 x 20.5 x 29.1 inches) and a weight of 54.4 kg (120 lbs), it is pretty large for a desktop resin 3D printer. The design follows Formlabs' usual design standards and features an anthracite aluminum chassis, a clear orange polycarbonate cover, and a 5.5-inch touchscreen. The printer features a butterfly door for easy access to the large build tray and is illuminated by an LED strip.
The Form 3L has a massive build volume of 335 x 200 x 300 mm (13.2 x 7.9 x 11.8 inches), making it one of the largest desktop SLA 3D printers on the market today. Regarding print quality, we use two 250 mW class 1 UV-A lasers (405 nm wavelength, 85 micron diameter) to achieve 25-micron X/Y resolution and 25-300 micron layer thickness. I am.
Form 3L has an automatic leveling feature, so users don't have to worry about the level settings. The printer has sensors that detect whether the tray is installed correctly, the resin used, and whether the resin tray is inserted correctly. It means that changing trays for each material is required, but will prevent future contamination.
Formlabs uses proprietary software for the Form 3L operating system and slicer. Slicers include PreForm, which has been used since the Form 1 release in 2012. This slicer offers basic features such as scaling, part orientation, printer selection, materials, and printing parameters, as well as smart features such as "one-click 3D printing."
The user can easily initiate printing in Form 3L remotely using Dashboard, Formlabs' cloud-based print management software. The user can also check their previous settings.
Form3 L is compatible with 17 different resins, allowing you to produce parts with a variety of properties and appearances. For example, you can use gray resin to print a model of the Leaning Pisa Tower, or dental resin Model V3 to print a detailed model of a dragon.
Finally, the main advantages of Form 3L are its large build volume and the ability to print large parts or a group of small items up to 2x faster than Form 3 by using two optical systems (LPUs) simultaneously. The Form 3L meets the needs of users looking for a wide range of manufacturing capabilities, from novices to experienced users.
Refined and reliable hardware and software from reality
Additionally, the P1S features a closed-loop controlled fan for effective thermal management. It also has a built-in activated carbon filter, which helps improve air quality during printing. These features allow P1S to produce higher quality 3D prints than P1P, giving superior results, especially when using temperature-sensitive and environment-sensitive materials.
Bambu Lab's P1S has become an irreplaceable piece of the 3D printer market, and its technological evolution signals future trends in 3D printing. The fully enclosed design and improved features make the P1S an attractive choice for a wide range of users, including professionals, hobbyists, and educational institutions.
Versatile and smart desktop 55W CO2 laser cutter
The bed size of xTool P2 is 355 x 660 mm, which allows the processing of large materials. In addition, with a maximum engraving speed of up to 600mm/s and 55W laser power, It provides high-speed and high-precision engraving. The equipment can also engrave long materials, curved surfaces, and tall objects, making it remarkably versatile.
xTool P2 is a versatile device that can flexibly meet your cutting and engraving needs as it is compatible with a wide variety of materials, including metals and non-metals. These features make xTool P2 suitable for a wide range of users, including DIY enthusiasts, crafters, and designers.
To summarize, the xTool P2's versatility, smart design, high engraving speed, wide range of material capabilities, and scalable options make it a high-performance laser cutter for a variety of needs.
A highly versatile CNC assembly kit that can process a variety of materials.
One of the features of ArtCNC Large is that it can process 1800 x 900 mm sub-block boards. This feature is a first in Japan for CNC assembly kits. Additionally, this kit is open source and can be modded with various options depending on your application. The device frame uses a V-slot frame that is easy to modify and recombine. This CNC machine can process not only wood but also light metals such as aluminum and brass.
Among the CNCs handled by AvalonTech, ArtCNC Large is the model with the widest processing range. This model is especially suitable for machining sub-block size (910x1820mm). Furthermore, AvalonTech's CNC assembly kit is open source and can be freely modded and improved, and there are several variations in the assembly method.
Overall, AvalonTech's ArtCNC Large is a highly versatile CNC assembly kit with a large work area, increased rigidity, open-source customization freedom, and the ability to process a variety of materials.
It can shoot against a white background and then automatically crop it, and it can also shoot a 360-degree view using photo editing software and accurate color reproduction lighting.
Photosimile 430 measures 45.3 x 45.3 x 103.2 inches (115 x 115 x 262 cm) and weighs 650.4 lbs (295 kg). possible item sizes for filming are 33.5 inches (85 cm) in diameter for top shots, 33.5 x 44.1 x 85.5 inches (85 x 112 x 217.17 cm) for side shots, and 33.5 x 33.5 x 80.3 inches (85 x 85) for 360-degree shots. x 204 cm). Additionally, the CRI (Color Rendering Index) is over 95, the color temperature is 5700K, and the LED lifespan is 50,000 hours.
The Photosimile 430 has a 22-inch platform and a built-in 360-degree turntable with a 300-pound capacity. LED lighting is dimmable from multiple angles and easy to operate. Simply place your object, adjust camera settings, light intensity, and turntable position using the software's live preview, click Snap, and your photo will automatically appear on your monitor screen in seconds. It also includes batch editing, stitching, and saving workflows.
This equipment and software work together to automate product photography and are easy to use, even without experience. You can shoot on pure white and transparent backgrounds, and save and reuse your best lighting, camera, turntable, and save settings. Consistent and fast results, and accurate colors make it ideal for photographing half mannequins, mannequins, and models. With its compact design, the Livelight feature quickly illuminates your products in the best possible way. It also helps reduce and eliminate image editing, with output photos in JPG, PNG, RAW, and TIFF, and 360 product views and videos in HTML5, GIF, MOV, and MP4.
Convert complex-shaped objects into 3D data and precisely measure their dimensions
The measurement range is 300 mm diameter x 200 mm height at low magnification and 70 mm diameter x 50 mm height at high magnification. The lighting system includes three-color LEDs (red, green, and blue) and blue LEDs. The image sensor is a 1-inch, 4-megapixel, monochrome CMOS image sensor with a display resolution of 0.1 µm. Digital zoom is available from 0.1x to 8x, and the image size is 2048 x 2048 pixels for both videos and still images.
The platform has 360° infinite rotation, a tilt mechanism of up to 45°, and a load capacity of 10kg. The control PC uses a dedicated Windows 10 Professional PC, the power supply is AC 100 to 240 V ± 10% 50/60 Hz, and the current consumption is 200 VA. The operating temperature range is +15 to +30℃, and the operating humidity range is 35 to 80%RH (non-condensing).
The repeatability of VL-350 is 2µm, while the measurement accuracy is ±10µm. This value is measured using a standard gauge in a specific measurement mode and at an ambient operating temperature of 23°C ± 1°C. These characteristics allow the VL-350 to perform highly accurate 3D measurements and play a significant role in industrial and research applications.
Moreover, the VL-350's compact size and light weight of 3.8kg make it easy to install and move. Such properties allow for use in limited spaces and flexible usage in different locations.
Simple and intuitive operation for 3D measurement using a hand-held probe while looking at the screen.
The main functions of the XM-1500 include navigation measurements/settings, statistics/analysis, and single-item measurements. The number of elements that can be set is 500 (excluding comment elements), and the maximum measurement points are 200 points per element. Basic measurement elements include plane, straight line, point, circle, cylinder, cone, and sphere, while special measurement elements include point (no correction), ellipse, single point circle, stepped cylinder, oblong hole, corner circle, and C-plane straight line. , torus, etc. Geometric tolerances include shape tolerances (flatness, roundness, straightness, cylindricity), posture tolerances (parallelism, perpendicularity, inclination), and positional tolerances (position, concentricity, coaxiality, symmetry).
Additionally, you can create or change a new coordinate system, workpiece movement, simple measurement, batch settings, number of measurement macros (100), number of probe settings (10), and average number of measurements (1 / 2 / 4 / 8 / 16 times). It also has functions such as Output options including inspection specifications, single-item reports (with or without navigation images), screen images, graphic display images, probe camera images, CSV output, etc. There is also an import/export function.
Regarding environmental resistance, the operating ambient temperature is +10 to +35 ℃. The operating ambient humidity is 20 to 80% RH (no condensation). The power supply voltage is AC 100 to 240 V 50/60 Hz, while the power consumption is 250 VA or less. The mass is approximately 7.7 kg.

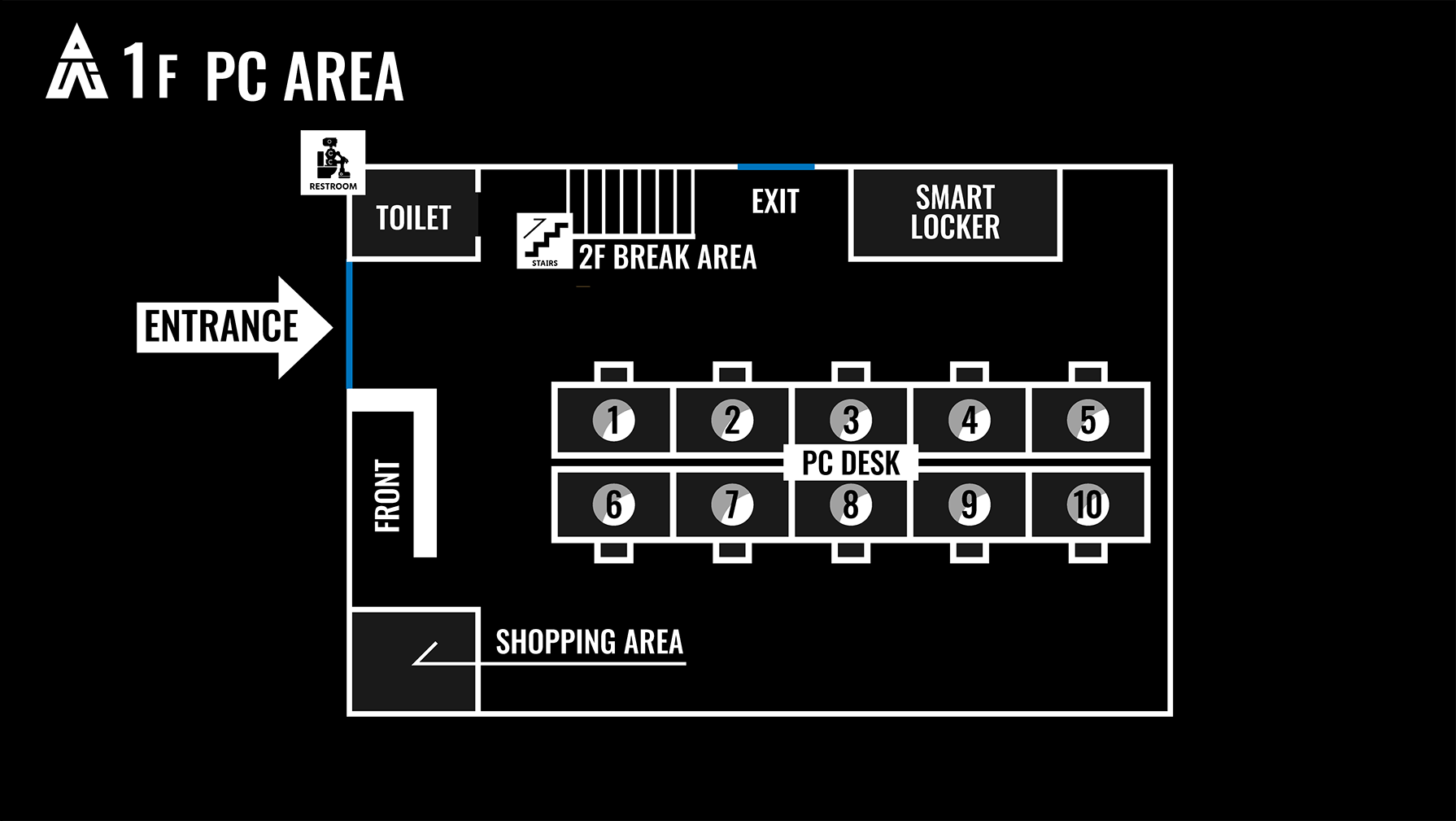

Windows11 Home 64bit
The RGB fan provides color from all sides except the front, maximizing the display effect. It has a luxurious design made from aluminum alloy plates and 4mm thick tempered glass for the automotive industry. The three-dimensional front enables an unbelievably powerful air-cooling system.
It comes with six standard cooling RGB fans (up to 7 when customized) from the front to the entire top of the case! The CPU cooler is a standard water cooler! It has a powerful cooling system to increase the ambiance as if it is ready to take off at any moment. It delivers performance that can withstand even the harshest gaming environments.
It has Core i7-13700, ASRock B760 Pro RS motherboard with B760 chipset, main memory is DDR5 16GBx2 32GB RGB, SSD / HDD primary NVMe 512GB P41 Plus Gen4x4 3500MB/s 1625MB/s, GeForce RTX 3060 Ti 8GB GDDR6X.

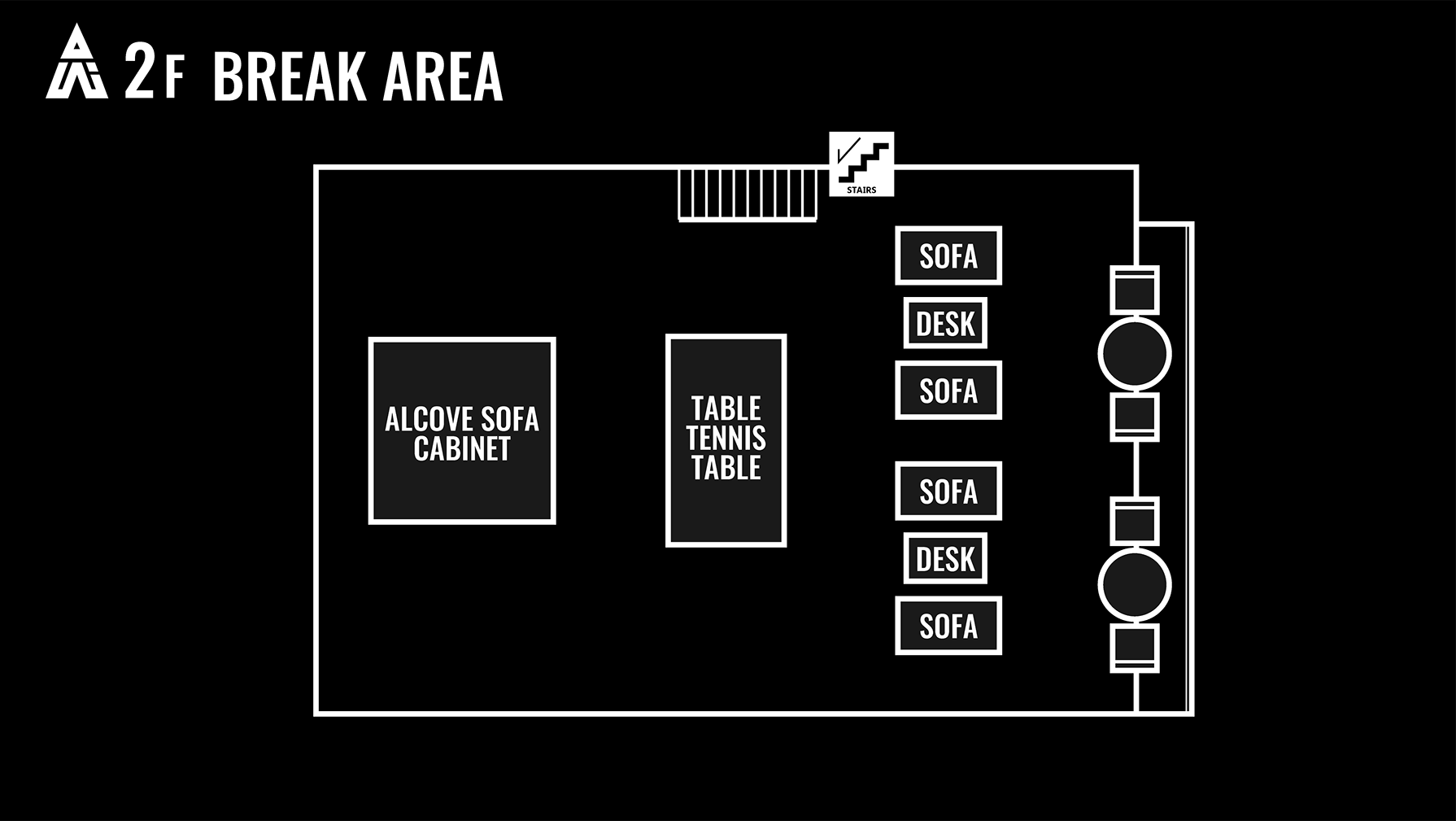

Table tennis table that is usable for meetings. Table tennis rackets and balls are available for rent(paid).
Its size is W2740(1370) x D1525 x H760mm, and the total weight is approximately 130kg. The top has particle-based low-pressure melamine veneer material, and the legs have particle-based olefin sheet finish. The color is black for both the top plate and legs.
Two private booths are available for telework web meetings, live streaming, etc. Electronic key authentication is available via the app.
The external size is W1575 x H2300 x D1295mm, and the internal size is W1445 x H2170 x D1208mm. Sound insulation is approximately 25dB, with standard layouts including a desk and coat hook. It weighs 520kg and is made of steel, aluminum, fiber acoustic board, and laminated glass. The lighting uses 4000K natural LED lights, while the power system is 100-240V / 50-60Hz & 12V-USB.
